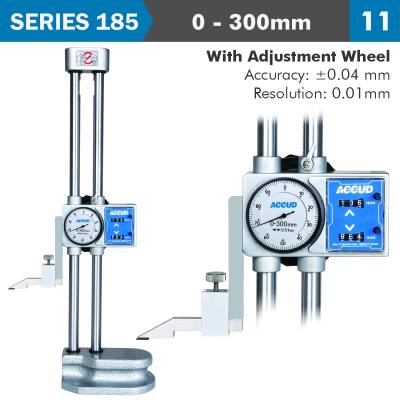

Dig. Height Gauge 300mm 0.04mm Acc. Driving Wheel 0.01mm Grad. S/steel
SKU: AC185-012-11
Category: Dial Height Gauges
Currently Out of Stock
Notify me when back in stock
SERIES 185
The Two-Column Dial Height Gauge is a precision measuring tool designed for high-accuracy height measurements, featuring a robust dual-column design for enhanced stability and accuracy. Unlike digital models, this height gauge uses a mechanical dial indicator for precise and reliable readings, making it ideal for professionals in machining, manufacturing, automotive, aerospace, and quality control who need durability and mechanical precision. The dual-column structure ensures minimal deflection, allowing for consistent results when measuring tall or heavy objects.
- Indicator graduation: 0.01mm
- Carbide tipped scriber
- Made of stainless steel (except the base)
- With driving wheel
- Optional accessory: 267 series clamps
| Description | Spec |
| Measurement range: |
0-300 mm |
| Scale: | 0.01 mm |
| Counter: | one counter to measure on + and one to measure on - |
| Accuracy: | ± 0.04 mm |
| Dimension b1: | 135 mm |
| Dimension b2: | 43 mm |
| Dimension c: | 33 mm |
| Dimension d: | Ø 15 mm |
| Dimension h: | 84 mm |
| Dimension L: | 475 mm |
| Tracing tip: | YES |
