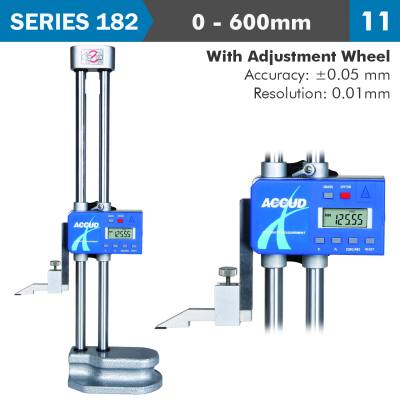

Dig. Height Gauge 600mm 0.05mm Acc. Driving Wheel 0.01mm Res. S/steel
SKU: AC182-024-11
Category: Digital Height Gauges
Currently Out of Stock
Notify me when back in stock
SERIES 182-11
The Two-Column Digital Height Gauge is an indispensable tool for professionals working with large or heavy components requiring highly accurate height measurements. Its stable dual-column design, digital precision, and robust construction make it a reliable choice in demanding industrial environments.
Digital Height Gauge with Data OutputWorkshop electronic/digital two-column height gauge by ACCUD, measuring range 0-600mm | 24' and resolution 0.01mm | 0.0005'.
The height gauge is equipped with ABS absolute measurement function, i.e. the ability to measure against the set zero value.
Adjustment is made by turning a guide knob on the back of the unit which also acts as the fine adjuster.
Made of stainless steel (except the base). Measuring tip - made of sintered carbide. Equipped with a data output port.
Made of stainless steel.
| Description | Spec |
| Measurement range: |
0-600mm / 24 in |
| Resolution: | 0.01 mm / 0.0005 ' |
| Accuracy: | +/- 0.05 mm |
| Mm / inch switch: | YES |
| ABS / INC function: | YES |
| On / Off / Zero button: | YES |
| Fine adjuster: | YES |
| HOLD function (hold result): | YES |
| Data output socket: | YES |
| Dimension a1: | 180 mm |
| Dimension a2 : | 54 mm |
| Dimension c : | 38 mm |
| Dimension Ød | 20 mm |
| Dimension h : | 88 mm |
| Dimension L: | 810 mm |
| Construction: | stainless steel tracer tip - carbide |
