Gigabit Power over Ethernet (PoE) Injector. 48V, 0.575A, Passive, 30W

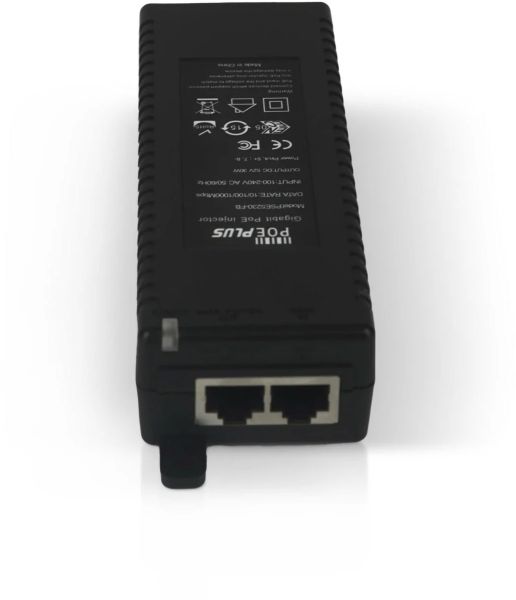

The Acconet POE-48V-30WPG passive PoE injector delivers 52V DC power and data transmission over a single Ethernet cable, adhering to IEEE 802.3/802.3u/802.3ab standards with gigabit speeds (10/100/1000 Mbps). It provides a maximum power output of 30W (0.6A) with power pin assignments of 4/5 (+) and 7/8 (–). This device is suitable for powering PoE devices such as IP cameras, wireless access points, and VoIP phones, particularly in areas with limited power outlets. Its plug-and-play design includes auto MDI/MDI-X and auto-negotiation, requiring no configuration. The injector supports remote power delivery up to 100 metres and operates within an AC input voltage range of 110–240V (50/60Hz) and a temperature range of 0°C to 50°C, with humidity tolerance of 5%–95% (non-condensing). With compact dimensions of 166mm x 57mm x 40mm and a weight of under 200g, it is suitable for various applications. The built-in circuit protection ensures safe operation. The device features one data input and one PoE output port (RJ45).
