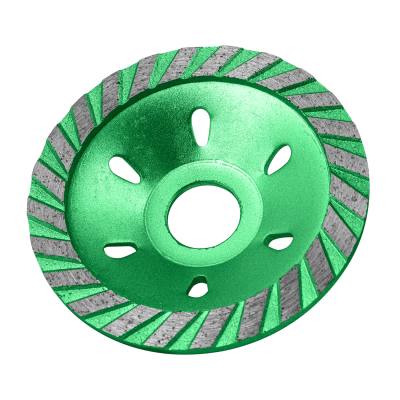

Dia.cup Wheel 100mm X 22.23mm Turbo Cold Pressed Contractor
SKU: TCCW40100-1
Category: Diamond Grinding Wheel/Miller
Currently Out of Stock
Notify me when back in stock
Cup Diameter: Ø100mm
Bore: 22.23mm
MAX RPM: 15 300
Type: Cold Pressed, Turbo Segment
The cup grinding wheel is used with an angle grinder to clean granite, masonry, concrete and stone surfaces.
A diamond blade grinds, rather than cuts through material. The blades typically have segments which contain diamond crystals embedded throughout the segment for grinding through very hard materials.
Application:
- Ideal for polishing: concrete, granite, masonry & other construction material.
- Smooth uneven joints and surfaces on concrete & stones.
- Preparation of surface for polishing application on granite.
- Surface cleanup & levelling.
| Description | Specification |
| Packaging Type | Clamp shell blister |
| Package Dimensions | 180(L) x 140(W) x 30(H)mm |
| Package Weight | 250g |
| Material | Steel body & Diamond segments |
| Max RPM | 15 300 |
| Cup diameter | Ø100mm |
| Cup body thickness | 3mm |
| Segment height | 5.5mm |
| Outer segment width | 7mm |
| Outer segment length | 25mm |
| Inner segment width | 7mm |
| Inner segment length | 18mm |
| Bore | 22.23mm |
| Segment Configuration | Turbo Segment |
| Bond Type | Cold Pressed |
| Recommended Tool | 115 / 125mm Angle Grinder |
