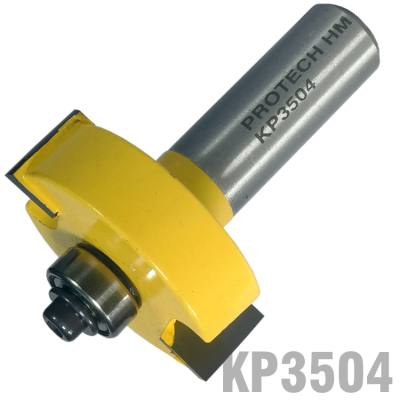

Rabbeting Bit 1 1/2' X 1/2' Depth 1/2' 1/2'shank
SKU: KP3504
Category: Rabbeting Bits
Currently Out of Stock
Notify me when back in stock
For cutting rebates
Rabbet: (răb′ĭt) also re·bate (rē′bāt′,răb′ĭt)
A cut or groove along or near the edge of a piece of wood that allows another piece to fit into it to form a joint.
By choosing alternateive bearings with a larger outside diameter, the depth of cut can be reduced. The cutting height can be increased with multiple passess.
Pupular with picture framers and joinery where a lap joint is required.
Refer to the specification tab for the optonal alternative bearing choices offered by us.
PRO-TECH router bits are manufactured in Taiwan.
| Part number | Cutting width | Cutting height | Depth | Shank |
| KP3504 | 1 1/2 inch | 1/2 inch | 1/2 inch | 1/2 inch |
| 38.1 mm | 12.7 mm | 12.7 mm | 12.7 mm |
| Part number | Bearing size |
| KP3503-1 | 5/8 inch OD x 3/16 inch ID |
| KP3503-2 | 3/4 inch OD x 3/16 inch ID |
| KP3503-3 | 7/8 inch OD x 3/16 inch ID |
| KP3503-4 | 1 inch OD x 3/16 inch ID |
| KP3503-5 | 1 1/8 inch OD x 3/16 inch ID |
| KP3503-6 | 1 1/4 inch OD x 3/16 inch ID |
* OD = Outside diameter ID = Inside
diameter
Length of shank: 38 mm
