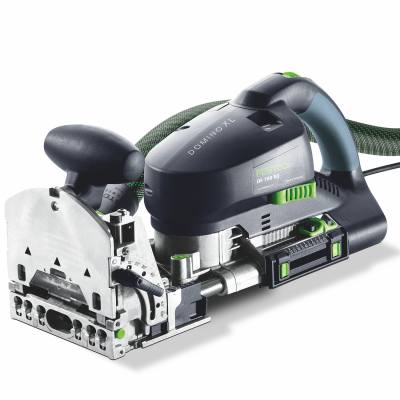

Festool DF 700 EQ-Plus DOMINO XL Joining Machine 720W In Systainer
SKU: FES576426
Category: Domino Joiners
Currently Out of Stock
Notify me when back in stock
At a Glance: Heavy-duty DOMINO joinery for strong joints up to 14 x 140 mm with fast, precise handheld mortising.
The Festool DF 700 EQ-Plus (DOMINO XL) is the “big brother” joiner for serious joinery—think doors, heavy frames, thick solid wood, and structural-style connections where you want strength, speed and repeatability without hauling workpieces to a stationary machine. Its unique pendulum milling action produces clean, accurate mortises quickly, while the DOMINO system gives you a joint that’s stable, self-aligning and rotation-proof from the first tenon. In short: fewer layout headaches, faster glue-ups, and joints that feel like they mean business.
Standout feature: DOMINO XL strength and speed in a mobile, workshop-friendly machineThe DF 700 comes to the workpiece (not the other way around), saving setup and handling time on big components. With variable routing depth and a precise stop system, you can repeat joinery settings accurately—ideal for door construction, furniture frames and heavy timber connections.
Product highlights- Up to 50% time saving Faster workflow compared to stationary machines for large, solid joints (less setup, less handling, less cleanup).
- DOMINO sizes up to 14 x 140 mm Built for strong, sturdy joints in thicker stock and large assemblies.
- Pendulum milling principle The cutter rotates and swings to create effortless, accurate mortises.
- Long-hole principle Tight first mortise for perfect reference, wider mortises after that for easy alignment during assembly.
- Innovative stop system Integrated impact pins help position quickly from a reference edge—great for repeating hole groups.
| Description | Spec |
|---|---|
| Brand | Festool |
| Cat No. | FES576426 |
| Model | DF 700 EQ-Plus |
| Product Type | DOMINO XL Joining Machine |
| System | DOMINO XL |
| Drive Type | Mains |
| Power Consumption | 720 W |
| Idle Engine Speed | 21 000 min⁻¹ |
| Depth Stop For Routing Depth | 15 - 70 mm |
| Maximum Routing Depth | 70.00 mm |
| DOMINO Groove Cutter Diameter | 8, 10, 12, 14 mm |
| Routing Height Adjustment | 10 - 50 mm |
| Mitre Routing | 0 - 90° |
| Dust Extraction Connection Diameter | 27 mm |
| Cable Length | 4.00 m |
| Product Weight Without Accessories | 5.50 kg |
| Compatible DOMINO Sizes | Up to 14 x 140 mm |
| Antistatic Function | Yes |
| Electronics | Speed Control |
| Cable System | Plug it Removable Cable |
| Dust Extraction System | CLEANTEC |
| Routing Vibration Uncertainty K | 1.50 m/s² |
| Routing Total Vibration Average Ah | 2.50 m/s² |
| Routing Noise Uncertainty K | 3.00 dB |
| Sound Pressure Level LpA | 83.00 dB(A) |
| Sound Power Level LWA | 94.00 dB(A) |
| Standards Series EN | 60745-2-19 |
- Festool DF 700 EQ-Plus DOMINO XL joining machine
- D 12-NL 70 HW-DF 700 DOMINO router cutter
- ZA-DF 500/700 additional stop
- Empty dowel box
- Open ended spanner, WAF 12
- Plug it cable H05 RN-F-4
- Systainer³ SYS3 M 437
