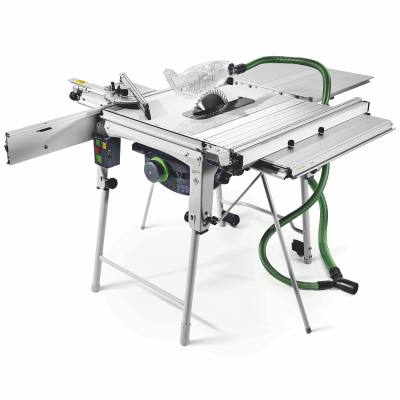

Festool TKS 80 EBS-Set Table Saw 254mm 2200W With SawStop AIM Technology
SKU: FES575828
Category: Table Saws
Currently Out of Stock
Notify me when back in stock
- Order number: FES575828
- Model: TKS 80 EBS-Set
Every year approximately 4,000 people are injured on circular saws, corresponding to 16 injuries per working day. Around 26% of serious accidents even result in an accident pension (German Social Accident Insurance (DGUV) statistics ‘Accidents at work 2017).
With the new TKS 80 table saw, the risk of most serious cutting injuries during sawing is reduced. While you concentrate on your work, we protect your most valuable tools – your fingers.
Your fingers – invaluable!
Strengths and benefits
- Improved safety: Less risk for your fingers - The responsive sensor on the integrated SawStop AIM technology provides increased safety when sawing in non conductive materials. SawStop AIM technology can also be deactivated if necessary
- Flexible: 80mm cutting height, extendable work surface, stopper and angle stop enable flexible work, even with large workpieces
- Splinter free cuts: Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left
- Protects your health: Dust extraction attachment with CLEANTEC extraction sleeve for dust free work and a free view of the workpiece
- Space saving: Tool garage attached on the side provides optimal storage space for saw blades, cartridges and push sticks
Main areas of use
- Cross-cutting up to a width of 820 mm with sliding table, at a cutting depth of 20 mm
- Rip cutting up to a cutting height of 80 mm and a width of 600 mm with an extension table
- Tilting saw blade for angled cuts between -2° and 47°
Items included
circular saw blade WOOD UNIVERSAL HW 254 x 2, 4 x 30 W40, KT-TKS 80 cartridge, angle stop, dust extraction set, extension table VB TKS 80, guide extension VL TKS 80, LA TKS 80 stopper, sliding table ST TKS 80, workpiece holder, hex key, WAF 5, 1 open ended spanner, size 50, 1 open ended spanner, size 23, in carton
Warranty all-inclusive
| Description | Spec |
|---|---|
| Brand | Festool |
| Cat No. | FES575828 |
| Model | TKS 80 EBS-Set |
| Product Type | Table Saw |
| Drive Type | Mains |
| Power Consumption | 2 200 W |
| Idle Speed | 1700 - 3500 min⁻¹ |
| Saw Blade Diameter | 254.00 mm |
| Saw Blade Bore | 30 mm |
| Included Saw Blade | HW 254x2,4x30 W40 |
| Cutting Height 90°/45° | 80/56 mm |
| Inclination | -2 / 47 ° |
| Table Dimensions | 690 x 580 mm |
| Table Height With Legs Folded | 385.00 mm |
| Table Height With Legs Unfolded | 900.00 mm |
| Dust Extraction Connection Diameter | 27/36 mm |
| Cable Length | 4.00 m |
| Cross-Cutting Capacity | Up to 820 mm with sliding table at 20 mm cutting depth |
| Rip Cutting Capacity | Up to 80 mm cutting height and 600 mm width with extension table |
| Safety Technology | SawStop AIM Technology |
| Electronics | MMC Multi Material Control |
| Dust Extraction System | CLEANTEC |
| Noise Uncertainty K | 3.00 dB |
| Sound Power Level LWA | 102.00 dB(A) |
| Sound Pressure Level LpA | 87.00 dB(A) |
- Festool TKS 80 EBS-Set Table Saw
- HW 254x2,4x30 W40 saw blade
- KT-TKS 80 cartridge
- Angle stop
- AB-AS CS/TKS dust extraction set
- VB TKS 80 extension table
- VL TKS 80 guide extension
- LA TKS 80 stopper
- ST TKS 80 sliding table
- Workpiece holder
- Hex key, WAF 5
- Open ended spanner, size 50
- Open ended spanner, size 23
